Specification
Item | Specification | |
Printing method | Direct thermal line printing | |
Print out detection | Paper end sensors function | |
Paper loading way | easy paper loading | |
Paper width | 57mm | |
Print width | 48mm | |
Resolution ration | 384dots/line | |
Printing speed | 50mm/s | |
Character | 6*8dots,8*16dots,12*24dots | |
Chinese character library | GB2312 16*16dots,24*24dots | |
Outline dimension | 110mm*51.1mm*64mm | |
Installation dimension | 102.1mm*55mm | |
Paper supplied | Thermal roll papaer (57mm,30mmø) | |

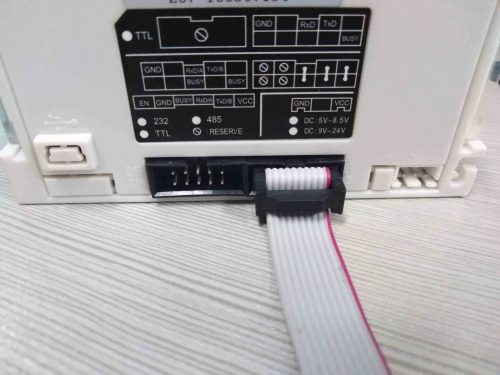

Interface | Serial RS-232, TTL, 485/ Parallel/ USB interface | |
Input power | DC 5V-8.5V, 3A/ 9V-24V,30W | |
Operating temperature | 0℃ ~ 50℃ | |
Storage temperature | – 20℃ ~ 60℃ | |
Operating humidity | 10% ~ 80% | |
Storage humidity | 10% ~ 90% |
