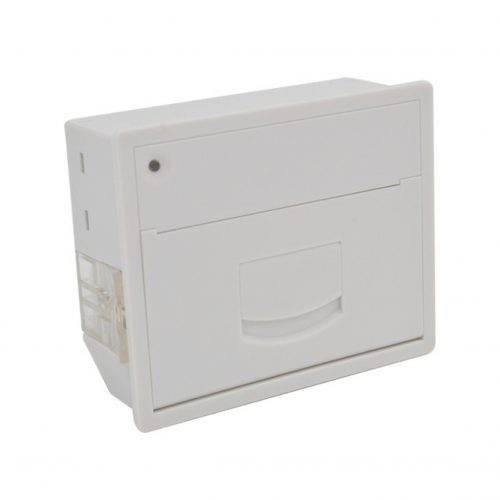

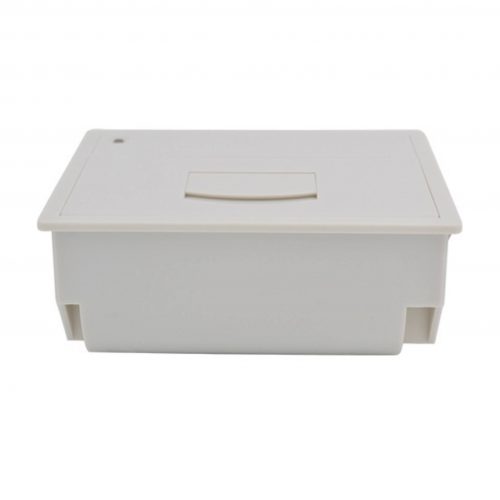

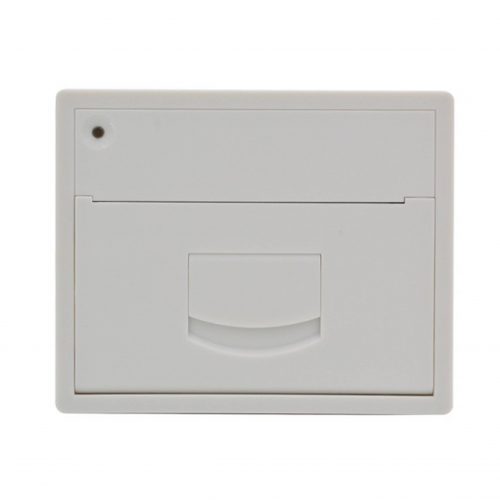

3 inch Thermal Panel Receipt Printer 80mm Paper Width —E46

$50.00

Features:

– Stylish, delicate and elegant appearance
– Very silent printing thru direct thermal printing
– Paper end sensors and self-motion memory printing function
– Abundant figure/ curves/ characters print function
– Add coordinate curve printing
– Serial RS-232C, 485 , TTL/ USB interface
– Easy paper loading

Category:
Specification
Item Specification
Printing method   Direct thermal line printing
Print out detection   Paper end sensors function
Paper loading way   easy paper loading
Paper width   80mm
Print width   72mm
Resolution ration   576dots/line
Printing speed   60mm/s
Character   6*8dots,8*16dots,12*24dots
Chinese character library   GB2312 16*16dots,24*24dots
Outline dimension   106mm*86.4mm*44.5mm
Installation dimension   100mm*80.4mm
Paper supplied   Thermal roll papaer (80mm,40mmø)

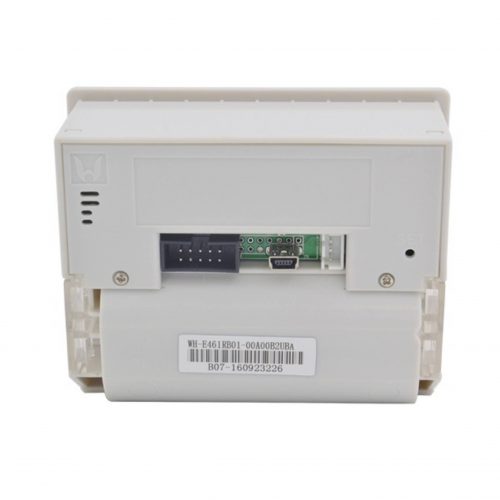

Interface   Serial RS-232, TTL, 485/ USB interface
Input power   DC 5V-8.5V, 3A/ 9V-24V,30W
Operating temperature   0ºC ~ 50ºC
Storage temperature   – 20ºC ~ 60ºC
Operating humidity   10% ~ 80%
Storage humidity   10% ~ 90%
