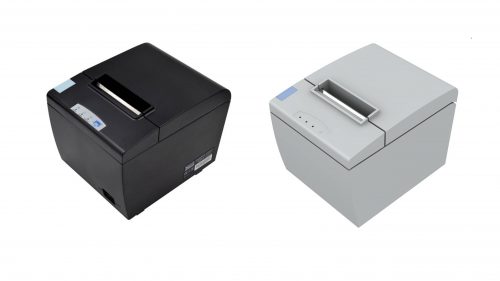

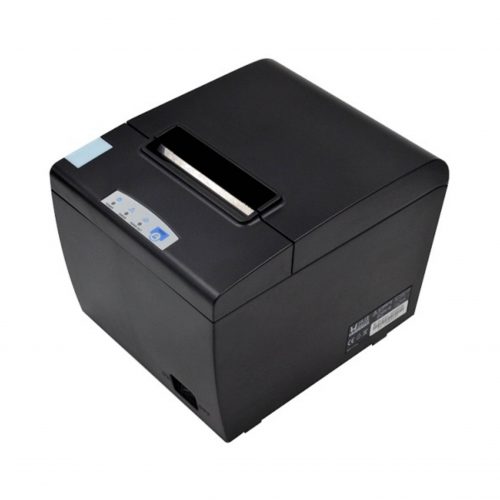

Three inch printer with set/half cutter and serial RS-232—-P04

$35.00

Features

– With set/half cutter, scissors type paper cutting, with hard-wearing cutter
– Very silent printing thru direct thermal printing method
– High speed(100mm/sec, based on character ratio 25%)
– Support 24V power
– Paper end sensors function and self-motion memory printing function
– Serial RS-232, TTL / Parallel/ USB/ Ethernet interface
– Abundant figure / curves / characters print function
– Easier paper loading (key ejecting type)

Applications

Mobile POS, Field sales and service, Transportation, Hospitality, Parking, Utility billing, Safety, Material management.



Item Specification
Printing method   Direct thermal line printing
cashbox   Two cashbox driver signals
Paper out detection   Paper end sensors and paper nearly end sensors function
Paper loading way   Easy paper loading
Paper width   80mm
Print width   72mm
Resolution ration   576dots/mm
Life of printing head   6,000,000 character lines
Printing speed   100mm/s
Character   6*8dots, 12*24dots
Chinese character library   GB2312 16*16dots,GBK 24*24dots
Input power   DC 24V, 50W
Outline dimension   150mm*192mm*144mm
Paper supplied   Thermal roll paper(80mm, 80mmø)
Interface   Serial RS-232,TTL/ Parallel/ USB/ Ethernet interface
Operating Temperature   5℃ ~ 50℃
Storage Temperature   -20℃ ~ 60℃
Operating Humidity   10% ~ 80%
Storage Humidity   10% ~ 90%
